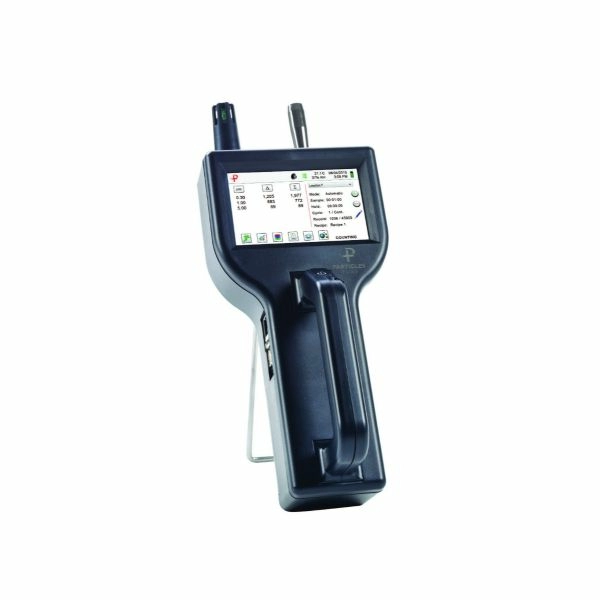

8303 Handheld Particle Counter

Particles Plus Handheld Airborne Particle Counter - Model 8303

Easy to configure, this instrument displays up to 3 user-selectable size channels as well as (optional) temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports. Export to Particles Plus data-software. The 8303 mass concentration mode approximates density in μg/m³ and allows for density and refractive index corrections to ensure accuracy. All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8303 ensures compliance with an on-board pulse height analyzer.


Purchase of the Particles Plus 8303 includes:

8303 Handheld Particle Counter
Quick start guide
Operating manual on USB flash drive
Isokinetic probe
Purge filter
Battery
Data download software
USB cable
Power supply & cable

Features & Benefits of Airy Technology 8303:

8303 Measures 0.3 µ to 25.0 µ
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 3 channels of simultaneous data
Approximates mass concentration in μg/m³ with density and refractive index corrections
Integrated handle for one-handed operation
Large easy-to-use icon-driven color touch screen display
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Annotation function allows user to save 32 character notations to a sample record
Real-Time Meter for detecting particle contamination sources
Easy configuration and transferable from instrument to instrument
Connect using USB or (optional) Ethernet, Wireless 802.11 b/g
Displays reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
Internal audible alarm
User-definable reports
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Lightweight high-impact injection-molded plastic enclosure
1-year warranty. Extended warranties available

Optional Features & Benefits:
Temperature and relative humidity probe
Ethernet, Wireless 802.11 b/g, RS485 or RS232 output
Additional 3 size channels
External printer


Specifications of Particles Plus 8303:

Size Range: 0.3 to 25 µ
Channel Sizes: Factory calibrated at 0.3, 0.5, 1.0, µ
Counting Efficiency: 50% @ 0.3 µ; 100% for particles >0.45 µ per JIS
Concentration Limit: 10,000,000 Particles/ft³ @ 10% coincidence loss
Light Source: Long Life Laser Diode
Zero Count Level: <1 count / 5 minutes (<2 particles/ft³) (per ISO 21501-4 & JIS)
Flow Rate: 0.1 CFM (2.83 LPM)
Calibration: NIST traceable
Sampling Time: 1 second to 99 hours
Sample Locations: Up to 1,000 locations 20 characters long
Vacuum Source: Internal pump with automatic flow control
Communication Modes: USB
Alarm: Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Display: 4.3" (10.9 cm) WQVGA (480x272) color touch screen
Power: 110 to 240 VAC 50/60 Hz universal in-line power supply
Battery: Removable Li-ion
Dimensions (L x W x H): 10" x 5" x 4.5" (25.4 cm x 12.9 cm x 11.4 cm) includes handle and does not include probes
Weight: 2.2 lb (1.0 kg)
Standards: ISO 21501-4 and JIS B9921
Warranty: 1 Year. Extended warranties available
Operating Conditions: 41° to 104°F (5° to 40°C) / 20% to 95% non-condensing
Storage Conditions: 41° to 104°F (5° to 40°C) / 20% to 95% non-condensing
Accessories: Quick start guide, operating manual on USB flash drive, isokinetic probe, purge filter, battery, data download software, USB cable, power supply & cable
Optional Accessories: Printed manual, carrying case, spare battery, external battery charger, external printer, isokinetic probes and temperature relative humidity sensor
